Airveda CO2 with Modbus

Meet Airveda CO2 monitor with Modbus, an easy way to measure CO2 and set up demand control ventilation in your building.

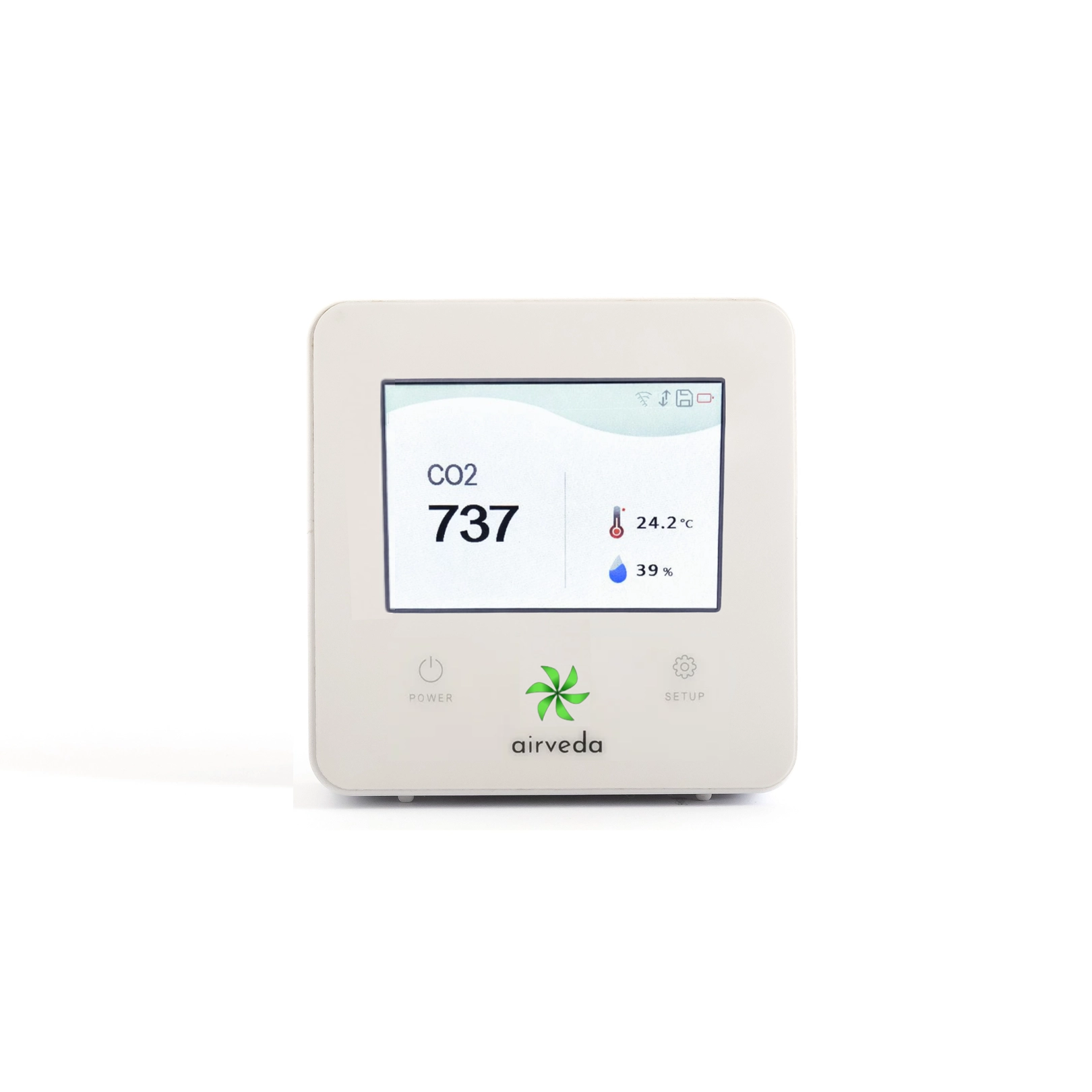

Airveda PM2.5, PM10, CO2, Temp, Humidity Monitor Touch
RESET certified Airveda PM2.5, PM10, CO2, TVOC, Temp, Humidity Monitor
RESET certified Airveda PM2.5, PM10, CO2, TVOC, Temp, Humidity Monitor
RESET certified Airveda PM2.5, PM10, CO2, TVOC, Temp, Humidity Monitor
RESET certified Airveda PM2.5, PM10, CO2, TVOC, Temp, Humidity Monitor
RESET certified Airveda PM2.5, PM10, CO2, TVOC, Temp, Humidity Monitor
RESET certified Airveda PM2.5, PM10, CO2, TVOC, Temp, Humidity Monitor
Accurate

This device uses a high quality, commercial NDIR CO2 sensor, which shows very good repeatability and stability. The sensor can be self-calibrated on site by taking it outdoors and calibrating to 400 ppm outdoors when needed.


Made In India - Locally Manufactured & Serviced

Airveda monitors are completely manufactured and serviced in India. Sensors are also calibrated locally to suit Indian conditions. Our manufacturing facility has been running for 30 years and is a trusted name in the local industry.


Mobile App Enabled

Real-time and historic data and alerts can be viewed in the Airveda app, available on iOS and Android.


Modbus Enabled

Compatible with Building Management systems via Modbus RS485.


Model Number: AVC-ND-MB

PRODUCT DETAILS

Technical Specifications

  • Parameter
    • Measurement parameters: CO2
    • Carbon Dioxide (CO2)
      • Range: 0-5000 ppm(can be extended to 10,000ppm on request)
      • Resolution: 1ppm
      • Error: 3% or 50ppm
      • Warm up time: 20 sec
      • Working Principle: NDIR
      • Life of sensor: ≥10 years
      • Calibration: Can be calibrated on-site by long pressing the SETUP button.
  • Display
    • No Display
  • Power
    • Charger Input:
      • Input AC: 110-240V, 0.3A, 50-60Hz 5V/2A (Charger)
    • Charger Output:
      • Output DC: 5V-2A (max) connected to the device via micro USB socket
    • Power Consumption: 10 Watt (Peak Power)
    • Internal Battery: 2900mAH/3.7V Lithium-ion rechargeable battery
    • Battery Backup: 4-6 Hours
  • Dimensions
    • Front:
      • Width: 117 mm
      • Height: 117 mm
      • Protrusion: 2 mm
      • Height(total): 119 mm
    • Back:
      • Width: 120 mm
      • Height: 120 mm
      • Protrusion: 2 mm
      • Height(total): 122 mm
    • Depth: 50mm + 1~1.5 mm(polyester plate)
    • Protrusion location: 38mm from back of device
  • Weight: 370 grams
  • MATERIAL: ABS
  • IP RATING: IP51
  • Operating Temperature: 0-60 degC
  • Operating Humidity: 0-95%
  • Service Contract

    • 1 Year warranty against any manufacturing defects.
    • Client responsible for getting devices to our facilities for all servicing. Service time 7-10 working days.
    • Warranty is void if the device is opened, tampered with or electronics damaged due to mechanical shock.
    • Warranty does not include sensor change.

APP CONFIGURABLE FEATURES

Note: Note: After making changes to the app, the device must be turned off and on once, and connected to the internet to receive updated settings from the server.
  • Measurement Frequency
    • Default
      • Cloud Storage: Data is measured every 30 seconds (measurement frequency ) and sent to the server every 1 minute (Sending Frequency).
    • Configurable Measurement frequency
      • Can be changed to 1min, 5min, 10min, and 20min via mobile app.
      • Note:
        • Longer sending frequency reduces power usage and battery backup as sending data to the server is very battery intensive.
        • Longer measurement frequency ensures longer local memory as a fixed number of items are stored in the memory. Also the sensor is turned off in between intervals which may help extend sensor life.
  • Alert Limits and Traffic Light Signal
    • Alert limits can be configured for each parameter via the app.
    • Get notifications on the app when alert limits are exceeded
  • Communication
    • Wi-Fi
      • Supports configuring up to 5 Wi-Fi networks including your home, office or personal hotspot.
      • Device will automatically connect with the Wi-Fi when it becomes available.
    • MODBUS RS485
      • Modbus ID, parity, stopbits and baudrate configurable via the Airveda app during configuration. Available under Advanced Settings.
      • Upto 32 devices can be connected in a single loop without using repeaters under ideal conditions.
      • Audio jack socket provided on device.
      • Data will start transmitting after 20 seconds, once data stabilises. Exception response 05
  • Local Memory
    • 6000 time-stamped sample data sets can be saved in case of connectivity failure. Local memory stores data for 2 days to 40 days based on the measurement frequency.
  • Data Interval
    • 30 Seconds to 20 min (Configurable via app)
  • Data push protocol
    • HTTP post request to host-server
  • LED Color Codes
    • Green: Power on
    • Red: Set-up mode
    • Blue: Connected to Wi-Fi
    • Blinking Blue: Data Transmission
    • Blinking Green: CO2 Calibration mode
Airveda Data Plan
You may optionally purchase our Data Plan which gives you access to our state-of-the-art web Dashboard which provides a comprehensive solution for managing, analyzing and understanding air quality in your projects. Airveda Dashboard is a RESET certified Data Provider and can be used for getting RESET certification for your projects.
Our diverse catalog of TV display templates enable organizations investing in air purification, to showcase indoor and/or outdoor air quality information to employees or visitors, to help them feel secure regarding the quality of air they are breathing Indoors.
These features require purchase of our Data plan. Please email info@airveda.com if interested to learn more.
