Airveda Eye with Gases

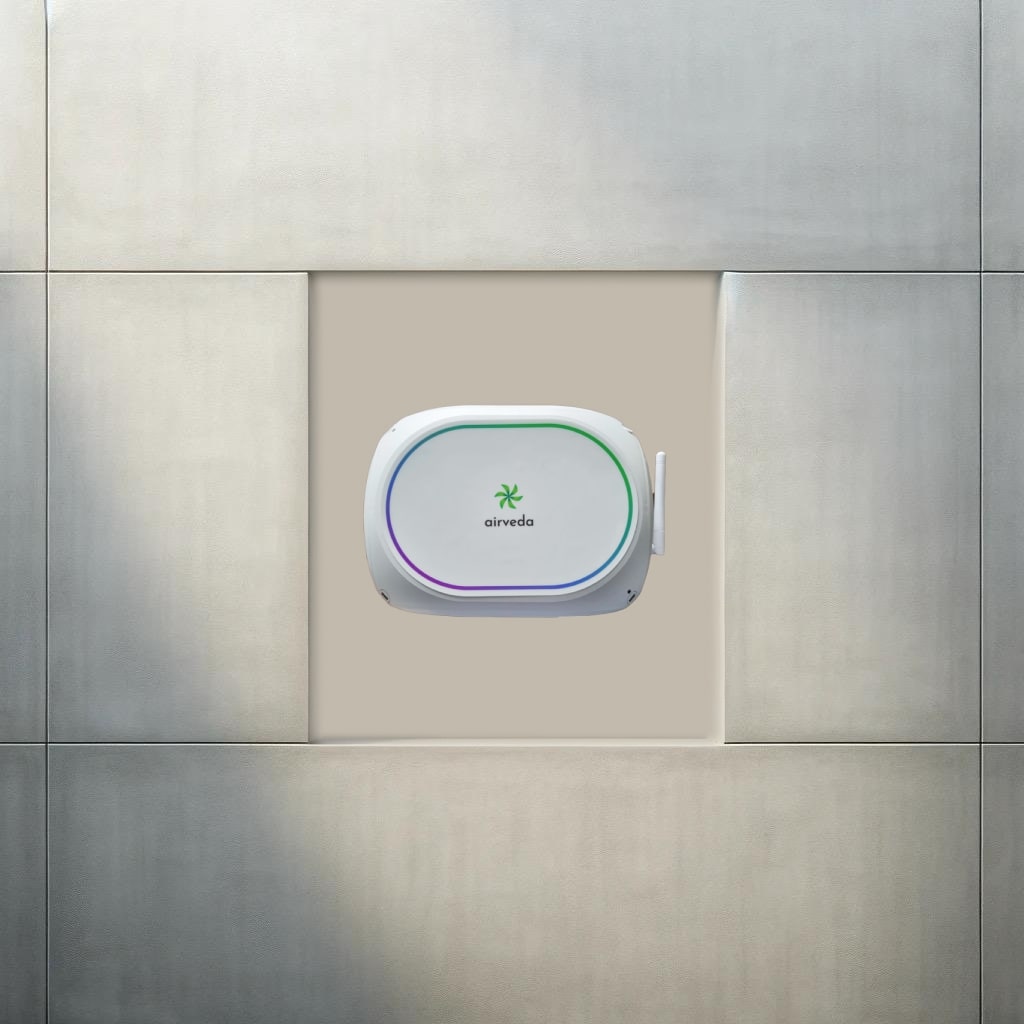

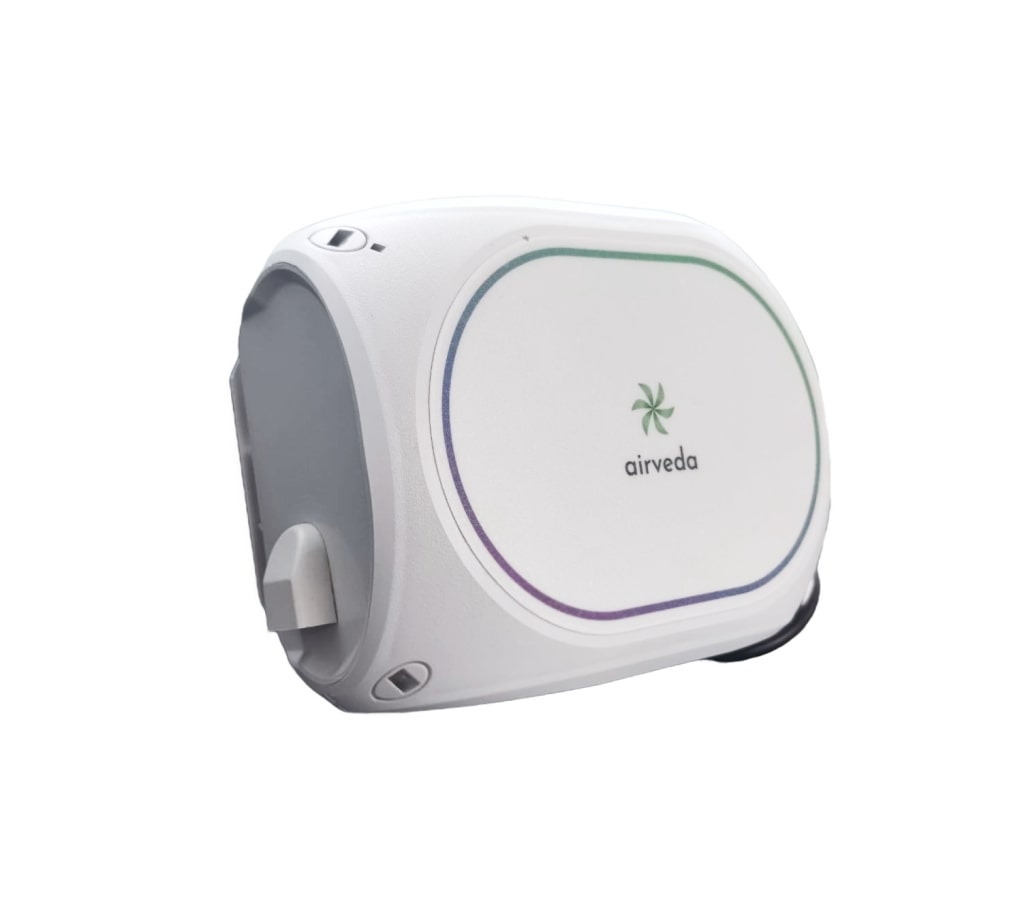

Meet Airveda Eye, an accurate, app-enabled and weather-proof air quality monitor for measuring PM2.5, PM10 along with CO, NO2, SO2, Ozone gases and weather parameters like Temperature & Humidity which can be wall or pole mounted and used both indoors or outdoors.


Airveda PM2.5, PM10, and Temperature, Humidity, Wind Speed, Wind Direction, Light and Noise Monitor
Airveda PM2.5, PM10, and Temperature, Humidity, Wind Speed, Wind Direction, Light and Noise Monitor
airveda-eye
airveda-eye
airveda-eye
airveda-eye
airveda-eye
airveda-eye
airveda-eye
Weather Proof

Comes in an IP65 box to ensure protection from dust and the elements.


Made In India - Locally Manufactured & Serviced

Airveda monitors are completely manufactured and serviced in India. Sensors are also calibrated locally to suit Indian conditions. Sensor calibration can be updated remotely, or at our factory and sensors can be replaced on-site. Our manufacturing facility has been running for 30 years and is a trusted name in the local industry.


Real-Time, Continuously Transmits Data

The monitor measures air quality every second, providing real-time data. The device supports Wi-Fi, to connect to the internet and transmit data to the server. The monitor can be configured with up to 5 Wi-Fi networks and will connect to the one that is available. The monitor also supports GSM, and can be used with a sim card in case Wi-Fi is unavailable.

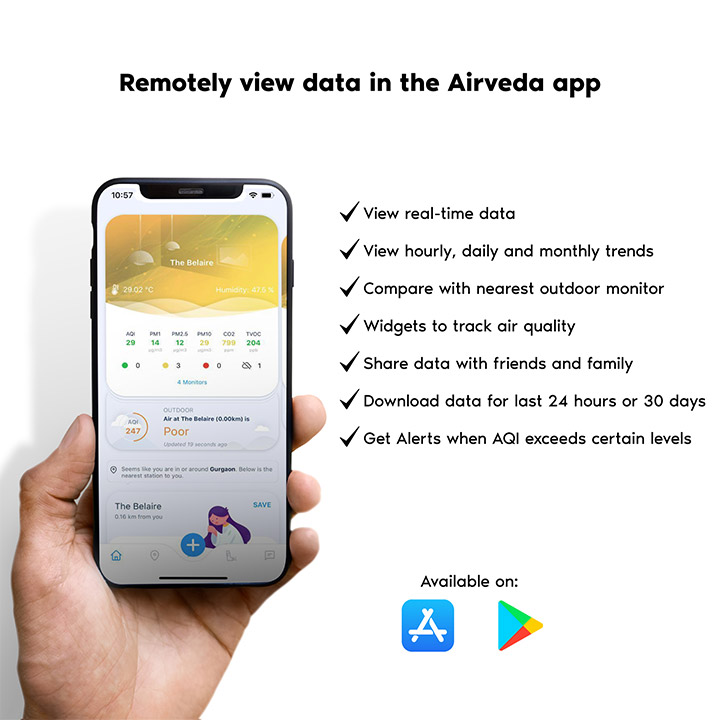

Mobile APP Enabled

Real-time, historic data and alerts can be viewed in the Airveda app, available on both iOS and Android.


Model Number: PM2510TH-SNOZCO-WPGSM-EYE

PRODUCT DETAILS

Technical Specifications

  • Measurement
    • Measurement parameters: PM2.5, PM10, Temperature, Humidity, Ozone, Carbon Monoxide, Sulphur Dioxide and Nitrogen Dioxide.
    • PM2.5
      • Range: 0-999 μg/m3
      • Resolution: 1 μg/m3
      • Error: Maximum of ±10% and ±10μg/m3
      • Warm up time: 20 sec
      • Working Principle: Light Scattering
      • Life of Sensor: 1-year
      • Calibration: Factory calibrated. Sensors can be changed on-site using a sensor kit. Recommend annual sensor change.
    • PM10
      • Range: 0-1999 μg/m3
      • Resolution: 1 μg/m3
      • Error: Maximum of ±10% and ±10μg/m3
      • Warm up time: 20 sec
      • Working Principle: Light Scattering
      • Life of Sensor: 1-year
      • Calibration: Factory calibrated. Sensors can be changed on-site using a sensor kit. Recommend annual sensor change.
    • Temperature
      • Range: 0 deg C to 60 deg C
      • Resolution: 0.1 deg C
      • Error: 1 deg C
      • Warm up time: 2 minute
      • Working Principle: CMOS
      • Life of Sensor: more than 10-year
      • Calibration: Can be calibrated using the mobile app in configuration mode. Under Advanced Settings.
    • Humidity
      • Range: 0-90%
      • Resolution: 1%
      • Error: 3%
      • Warm up time: 2 minute
      • Working Principle: CMOS
      • Life of Sensor: more than 10-year
      • Calibration: Can be calibrated using the mobile app in configuration mode. Under Advanced Settings.
      • Range: 125-600ppb
      • Res: 1ppb
      • Accuracy: 15%
      • Initialisation time: 15 minutes. Self calibrating.
    • Ozone (O3)
      • Range: 0-9999 ppb
      • Resolution: 0.1 ppb
      • Error: 15%
      • Warm up time: 1 minute
      • Working Principle: Electrochemical sensor
      • Life of Sensor: 24 months warranted by manufacturer.
      • Calibration: Factory calibrated
    • Carbon Monoxide (CO)
      • Range: 0-9999 ppm
      • Resolution: 0.1 ppm
      • Error: 15%
      • Warm up time: 1 minute
      • Working Principle: Electrochemical sensor
      • Life of Sensor: 24 months warranted by manufacturer.
      • Calibration: Factory calibrated
    • Sulphur dioxide(SO2)
      • Range: 0-999 ppb
      • Resolution: 0.1 ppb
      • Error: 0%
      • Warm up time: 1 minute
      • Working Principle: Electrochemical sensor
      • Life of Sensor: 24 months warranted by manufacturer.
      • Calibration: Factory calibrated. Sensors can be changed on-site using sensor kit
    • Nitrogen dioxide (NO2)
      • Range: 0-9999 ppb (Overgas limit: 50ppm)
      • Resolution: 0.1 ppb
      • Error: ±2% or ±15 ppb
      • Warm up time: 1 minute
      • Working Principle: Electrochemical sensor
      • Life of Sensor: 24 months warranted by manufacturer.
      • Calibration: Factory calibrated. Sensors can be changed on-site using sensor kit

Power

  • Power

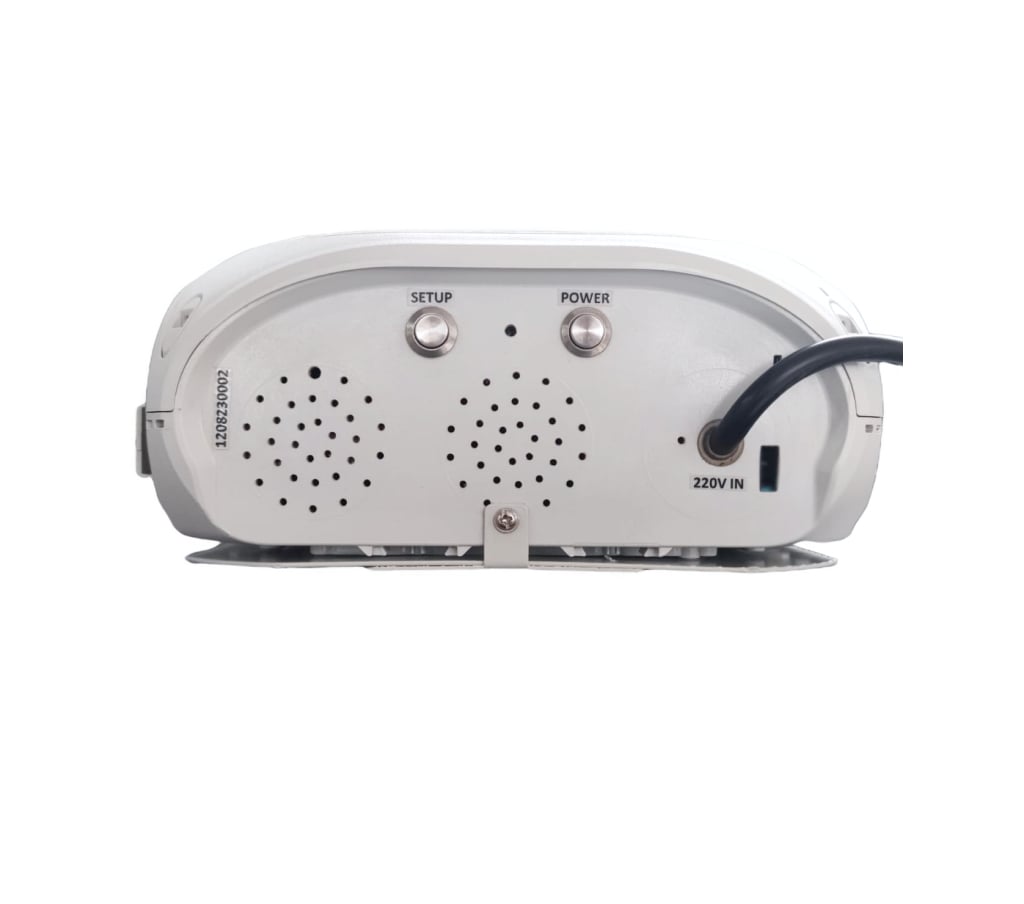

    • AC Mains Power Input : 110-240V AC, 0.3A, 50-60Hz (3m power cable provided)
    • Power Consumption : 10 Watt (Peak Power)
    • Battery Specs : 2*2900 mAh re-chargeable battery
    • Battery Backup : 4-6 hours

General

  • Display: 2 Line LCD Display (Inside the box)

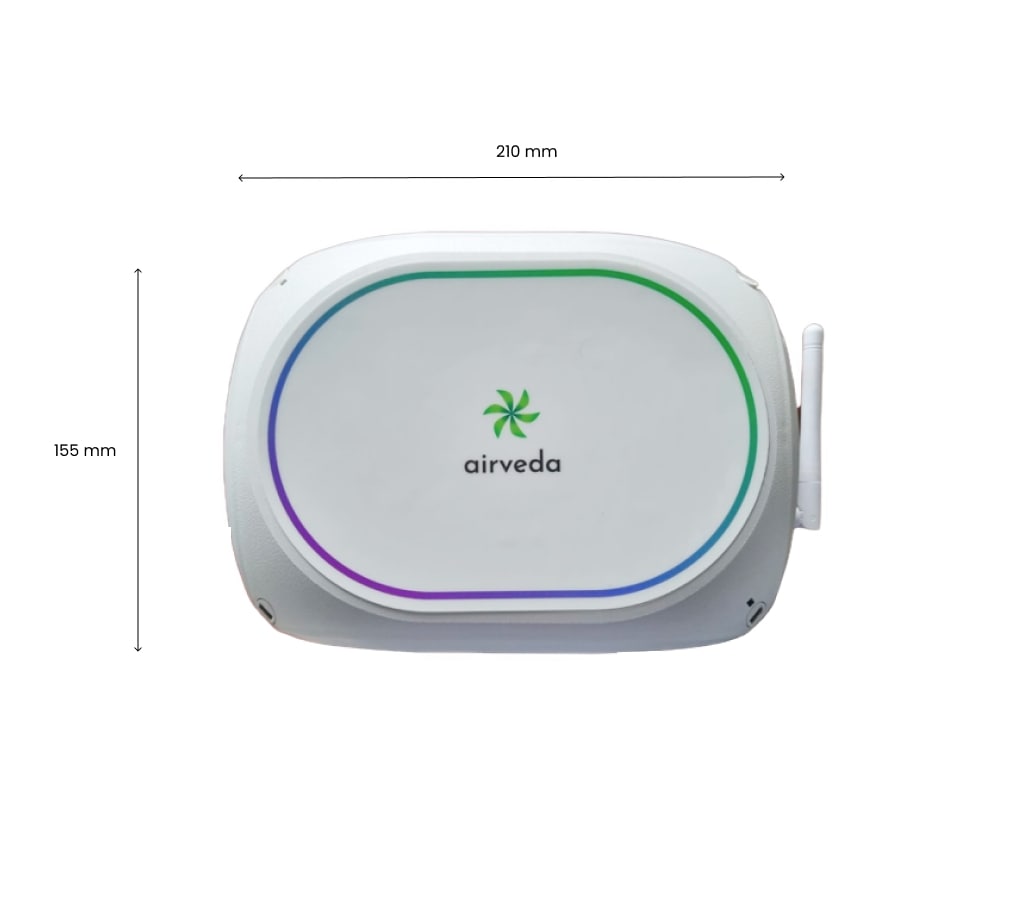

  • Size:
    • Outdoor Cabinet:
      • Height: 155mm
      • width: 210mm
      • Depth: 93mm
  • Weight: 1.4 kg
  • Material: ABS
  • IP Rating: IP65
  • Operating Temperature: 0-60 degC
  • Operating Humidity: 0-95% RH

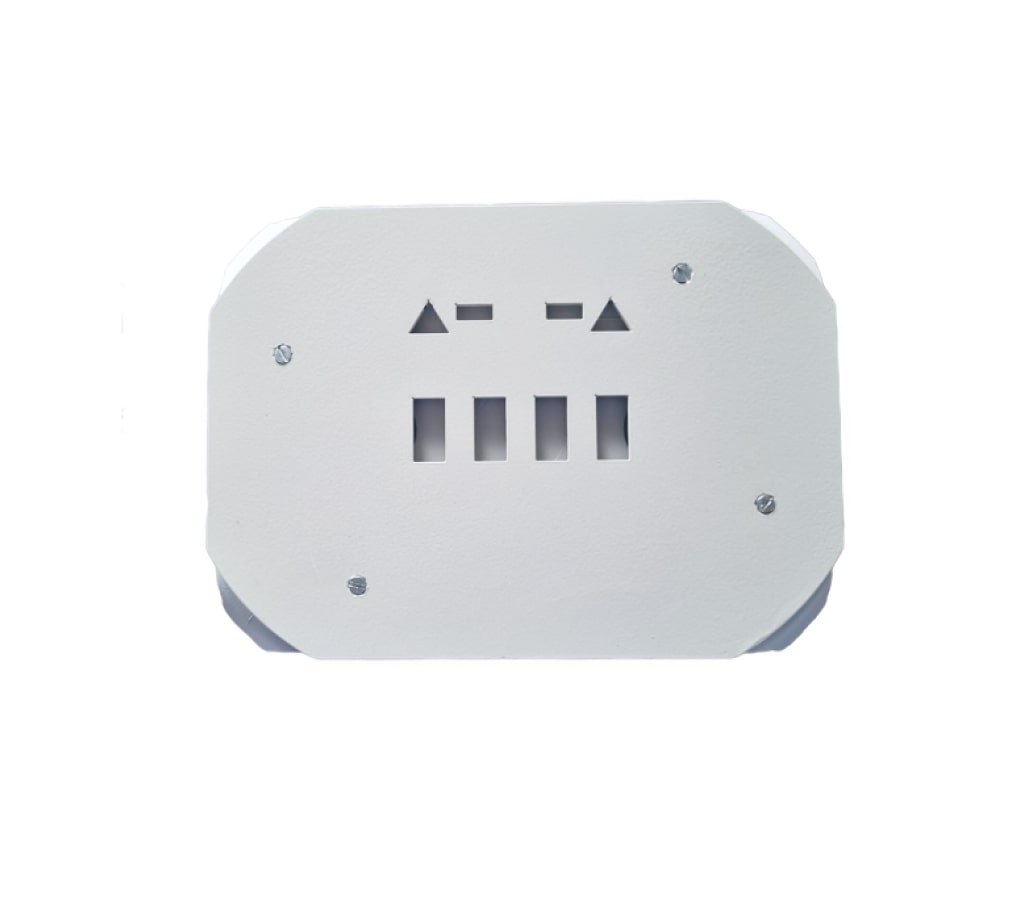

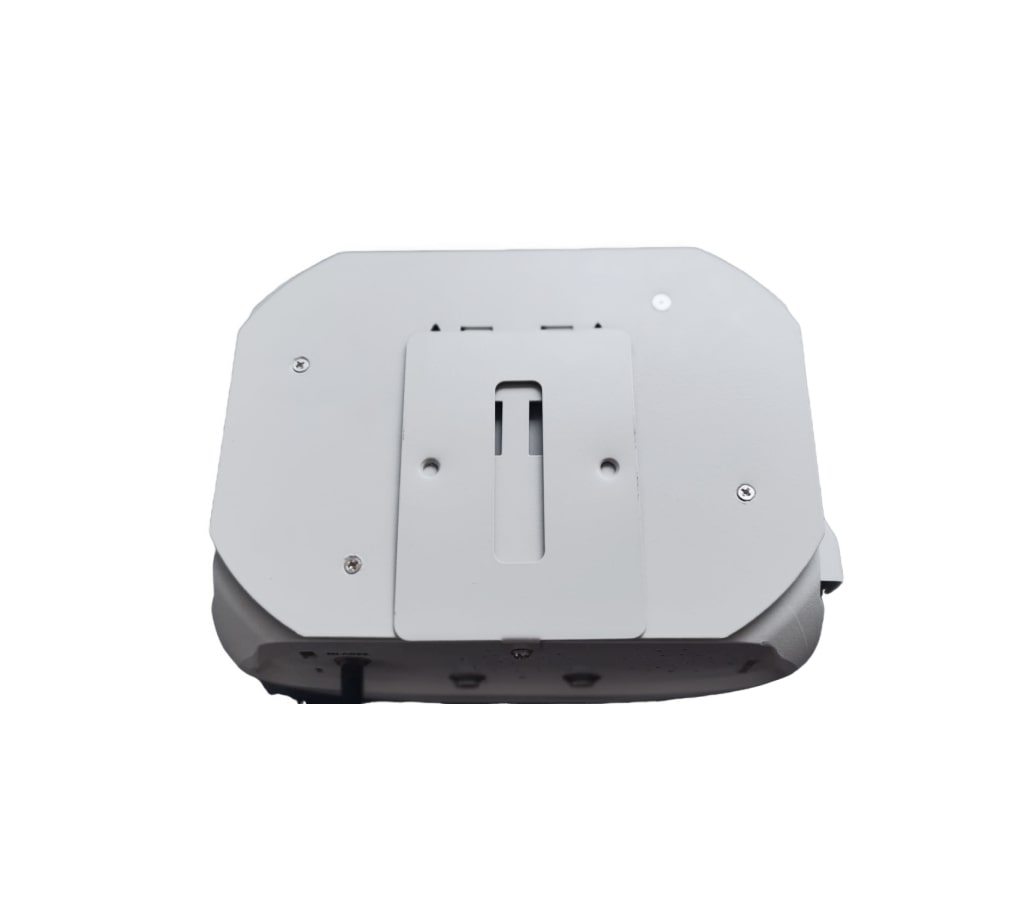

  • Mounting Options:
    • Wall/pole mounted
    • Wall-mounting mounts provided by default
    • Pole Mounting accessories provided on request

LED Colors

  • The colors of the LED can be used to understand the current status of the device. This is helpful during configuration and setup and also to know when data is being transmitted.
  • The differnet possible colors of the LED and their corresponding device status are:
    • GREEN: Normal Data Mode
    • RED: Set-up mode
    • BLUE: Connected to Wi-Fi
    • BLINKING BLUE: Data is being transmitted to server
    • BLINKING GREEN: CO2 Calibration mode

APP CONFIGURABLE FEATURES

Note: After making changes via the app, the device must be turned off and on once, and connected to the internet to receive updated settings from the server.

  • Measurement Frequency
    • Default:
      • Cloud Storage: Data is measured every 30 seconds (measurement frequency ) and sent to the server every 1 minute (Sending Frequency).
    • Configurable Measurement frequency
      • Can be changed to 30 sec,1min, 5min, 10min, 20min & 30 mins via mobile app.
    • Configurable Sending Frequency
      • Can be changed to 30 sec,1min, 5min, 10min, 20min & 30 mins via mobile app.
    • Note:
      • A higher data sending time interval (or lower frequency) reduces power usage and extends battery life, as transmitting data to the server is very battery-intensive.
      • A higher data measurement time interval (or lower frequency) ensures longer local memory as a fixed number of items are stored in the memory. Also the sensor is turned off in between intervals which may help extend sensor life.
  • Alert Limits
    • Alert limits can be configured for each parameter via the app.
    • Get notifications on the app when alert limits are exceeded
  • US & INDIAN AQI
    • Select US or Indian AQI via APP/dashboard

Communication

  • Connectivity
    • Wi-Fi :
      • Supports configuring up to 5 Wi-Fi networks including your home, office or personal hotspot.
      • Device will automatically connect with the Wi-Fi when it becomes available.
    • GSM 2G/3G/4G
      • SIM can be accessed/replaced by opening the cover to keep it secure.
  • Local Memory
    • Local memory stores data for 2 days to 40 days based on the measurement frequency.
  • Data Interval
    • 30 Seconds to 20 min (Configurable via app).
  • Data Push Protocol
    • HTTP post request to host-server

SERVICE CONTRACT

  • 1 Year warranty against any manufacturing defects.
  • Client responsible for getting devices to our facilities for all servicing. Service time 7-10 working days.
  • Warranty is void if the device is opened, tampered with or electronics damaged due to mechanical shock.
  • Warranty does not include sensor change.
