Reset Logo Airveda Touch with GSM

Measures PM2.5, PM10, CO2, TVOC, Temperature and Humidity and comes with Wi-Fi and GSM support.

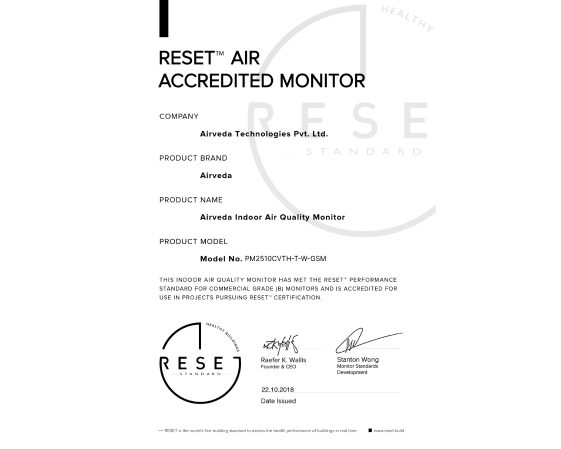

RESET certified Airveda PM2.5, PM10, CO2, TVOC, Temp, Humidity Monitor
RESET certified Airveda PM2.5, PM10, CO2, TVOC, Temp, Humidity Monitor
RESET certified Airveda PM2.5, PM10, CO2, TVOC, Temp, Humidity Monitor
RESET certified Airveda PM2.5, PM10, CO2, TVOC, Temp, Humidity Monitor
RESET certified Airveda PM2.5, PM10, CO2, TVOC, Temp, Humidity Monitor
RESET certified Airveda PM2.5, PM10, CO2, TVOC, Temp, Humidity Monitor
RESET certified Airveda PM2.5, PM10, CO2, TVOC, Temp, Humidity Monitor

We often hear from clients that corporations are unable to share their Wi-Fi due to security concerns. Hence introducing our GSM version of the much loved RESET certified Airveda model which enables easy connectivity and plug and play. Just insert the sim, turn the power on and the device is ready to start sending data with no Wi-Fi or additional configuration required.

ACCURATE

The monitor uses a high quality laser sensor to measure PM2.5 ∓ PM10, calibrated against BAM (Beta Attenuation Monitor - used by govt.). An independent study showed correlation greater than .9 with BAM. CO2 sensor uses high accuracy commercial NDIR CO2 sensor which can be easily calibrated on-site. Temp and humidity are calibrated by a master source traceable to NABL. TVOC is a commercial grade MEMS metal oxide semiconductor sensor which self calibrates to the environment.


PORTABLE AND REAL-TIME

The small size and long battery life of 6-8 hours makes Airveda monitors extremely portable. It measure your air quality every second so you can understand the air quality where you are, in real-time.


VISUAL INDICATOR

Each parameter is color coded with traffic light colors (green, yellow, red) based on alert limits configurable by you in the app. This enables you to quickly see if any parameter has exceeded desired limits. You can also touch to select the parameter you wish to display in bold and big font so that it is visible easily from afar.


MADE IN INDIA - LOCALLY MANUFACTURED & SERVICED

Airveda monitors are completely manufactured in India. Sensors are calibrated locally to suit Indian conditions but can also be remotely calibrated for any specific geography if reference data is provided for that location.. Sensors can be locally re-calibrated as well as replaced easily. Our manufacturing facility has been running for 30 years and is a trusted name in the local industry.


Supports Wi-Fi and 2G/3G/4G GSM connectivity

This device supports both Wi-Fi and GSM connectivity and will connect to and switch between either network depending on availability. You may configure your Airveda monitor with up to 5 Wi-Fi networks. This device also supports GSM connectivity, which allows you to connect this device to 2G/3G/4G network by inserting the SIM of the preferred network provider.


APP ENABLED

Choose between US AQI & Indian AQI. Understand air quality data trends with hourly, daily & monthly historical data. Plan activities to limit your exposure to pollution. Customize two air quality limits for your monitor via the app. Get real-time alerts when these limits are exceeded, so you take appropriate action such as use masks, or turn on air purifiers or the kitchen chimney.


LOCAL MEMORY

Local memory can store data up to 2 days of data at 30 second frequency in case of internet outage and automatically upload to the server when the internet becomes available. Measurement and sending frequency of data can be updated remotely which can allow data to be stored for additional days and/or reduce power usage.


Model Number: PM2510CVTH-T-W-GSM

PRODUCT DETAILS

Technical Specifications

  • Measurement
    • Measurement parameters: PM2.5, PM10, CO2, Temp, Humidity, TVOC
    • PM
      • Range of PM2.5: 0-999 μg/m3
      • Range of PM10: 0-1999 μg/m3
      • Minimum resolution of < 0.3 μm
      • Relative error Maximum of ±10% and ±10μg/m3
      • Response time: Less than 10 seconds when scene changes
      • Warm Up Time: 20 seconds
    • CO2
      • Range: 350 ppm to 5000 ppm (extendable till 10,000 ppm)
      • Accuracy: +/-30ppm or +/3%
      • Response time: 5 seconds
      • Warm Up Time: 2 minutes
      • Self-calibrating. Can be manually calibrated by taking the device outdoors and long pressing Setup Button.
    • Temperature
      • Range: 0 deg C to 65 deg C
      • Accuracy: 1 deg C
      • Resolution: 0.1 deg C
      • Response Time: 2 seconds
      • Warm-Up time: 5 seconds
    • Humidity
      • Range: 0 to 99%
      • Accuracy: +/- 3%
      • Resolution: 0.1 deg C
      • Response Time: 2 seconds
      • Warm-Up time: 5 seconds
    • TVOC
      • Range: 0-9999 ppb
      • Resolution: 1 ppb
      • Accuracy: 15%
      • Initialisation time: 15 minutes. Self-calibrating.
      • Response Time: 2 seconds
      • Warm-Up time: 3 minutes
  • Portable

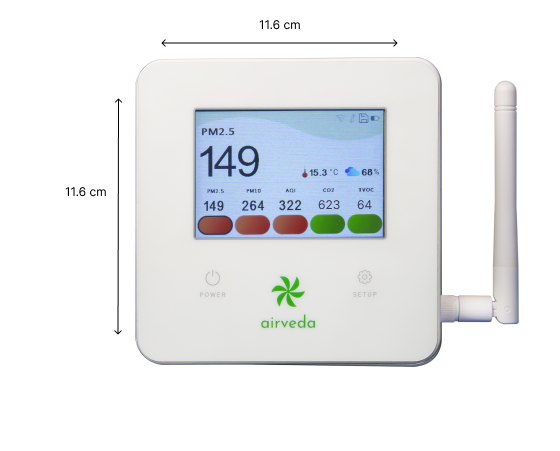

    • Size: 11.7cm*15cm*5cm
    • Power voltage: 5V
    • Can be charged via laptop/car USB
    • Weight: 370 gms
    • 5800mAH/3.7V Lithium-ion rechargeable battery
    • 6-7 hours of battery backup
  • Connectivity
    • Wi-Fi
    • GSM
  • Display
    • 3.5” Touch display
    • Desired parameter to be displayed as bold can be pressed to select.
    • Limits for red, yellow, green color can be configurable via app.

Warranty & Support

  • 1 Year warranty against any manufacturing defects.
  • Client responsible for getting device to our facilities for all servicing. Service time 1 week.
  • Warranty is void if device is opened, tampered with or electronics damaged due to mechanical shock.
  • Sensor change and calibration is not included in warranty.

Working Principle

  • PM sensor uses laser scattering principle: Light scattering can be induced when particles go through the detecting area. The scattered light is transformed into electrical signals and these signals will be amplified and processed. The number and diameter of particles can be obtained by analysis because the signal waveform has certain relations with the particles diameter.
  • The CO2 sensor is a commercial high accuracy NDIR based (Nondispersive infrared sensor).
  • TVOC is MOS Mems based sensor.
  • Temperature sensor is CMOS, Humidity is Capacitive.

Tested and calibrated against

  • PM: Beta Attenuation Monitor (BAM)
  • CO2: Can be self-calibrated to 400ppm outdoors by taking the monitor outdoors and long pressing the Setup button on the monitor.
  • Temp & Humidity calibrated with a master traceable to NABL.
Airveda Data Plan
You may optionally purchase our Data Plan which gives you access to our state-of-the-art web Dashboard which provides a comprehensive solution for managing, analyzing and understanding air quality in your projects. Airveda Dashboard is a RESET certified Data Provider and can be used for getting RESET certification for your projects.
Our diverse catalog of TV display templates enable organizations investing in air purification, to showcase indoor and/or outdoor air quality information to employees or visitors, to help them feel secure regarding the quality of air they are breathing Indoors.
These features require purchase of our Data plan. Please email info@airveda.com if interested to learn more.
