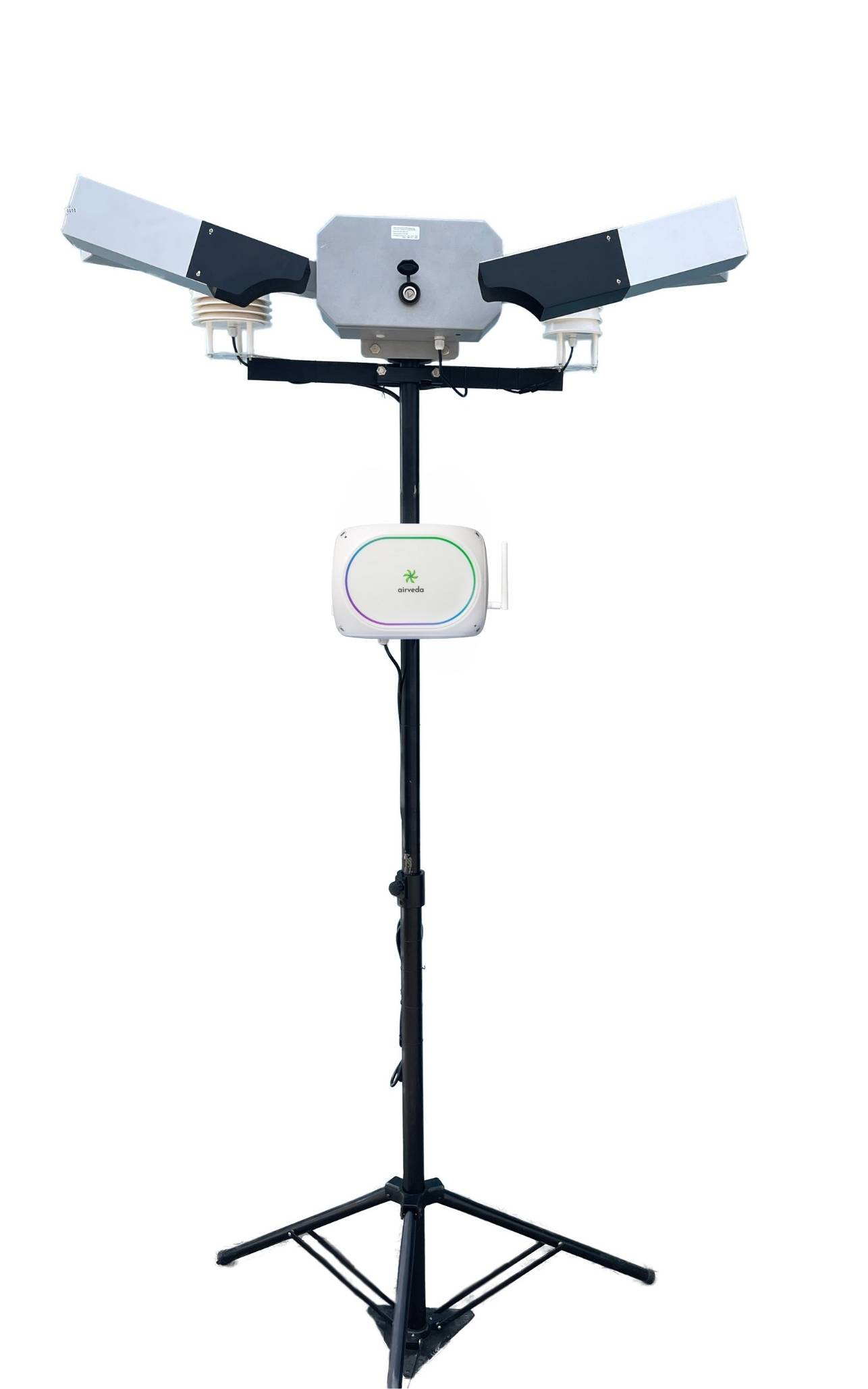

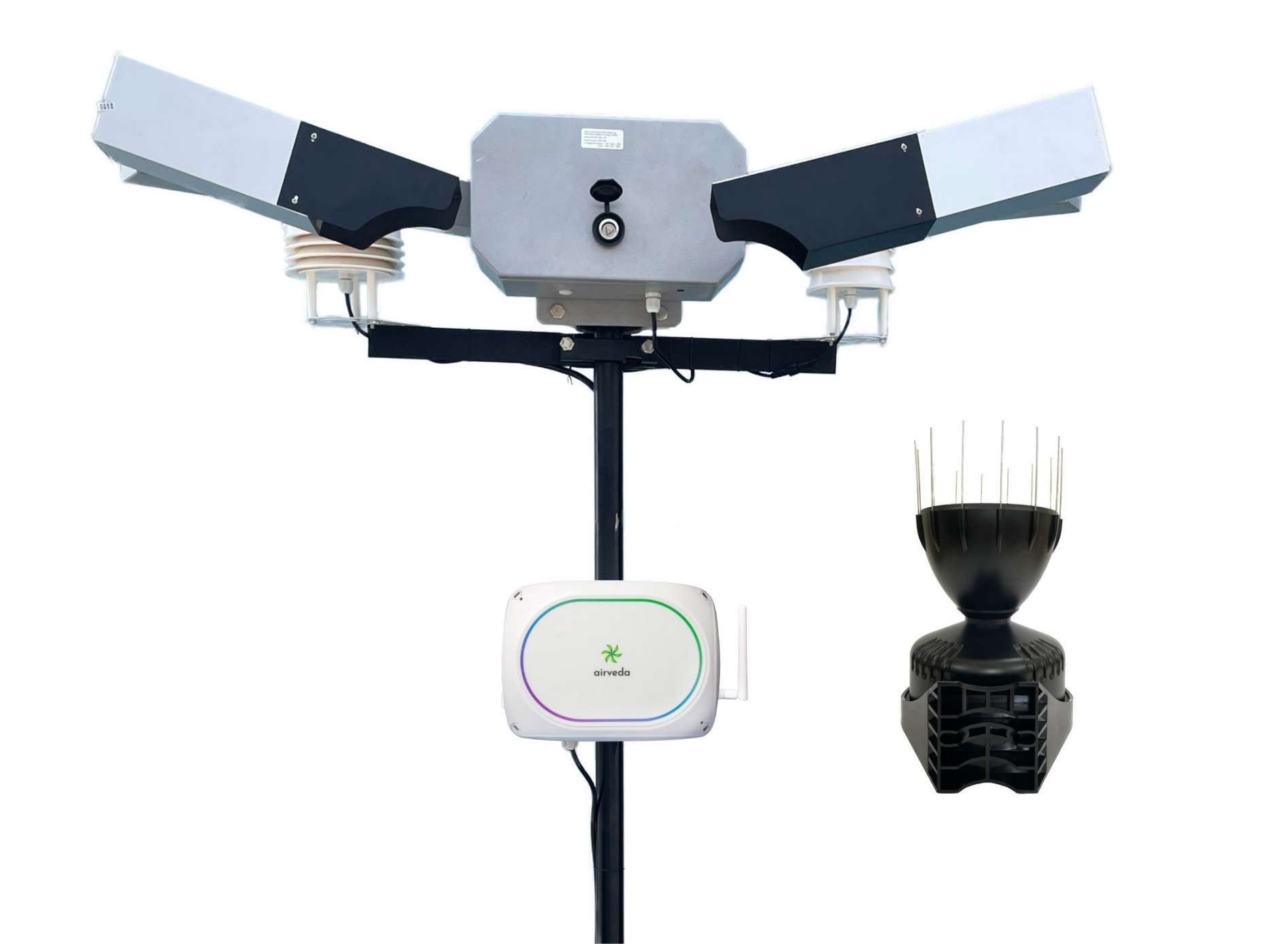

Airveda Airport

Measures PM2.5, PM10, Temperature, Humidity, Wind Speed, Wind Direction, Daylight visibility, Light, Noise and Rainfall with GSM and Wi-Fi connectivity.


Airveda PM2.5, PM10, and Temperature, Humidity, Wind Speed, Wind Direction, Light and Noise Monitor
Airveda PM2.5, PM10, and Temperature, Humidity, Wind Speed, Wind Direction, Light and Noise Monitor
Airveda PM2.5, PM10, and Temperature, Humidity, Wind Speed, Wind Direction, Light and Noise Monitor
Airveda PM2.5, PM10, and Temperature, Humidity, Wind Speed, Wind Direction, Light and Noise Monitor
Airveda PM2.5, PM10, and Temperature, Humidity, Wind Speed, Wind Direction, Light and Noise Monitor

Meet India’s first ACCURATE and APP-ENABLED, WEATHER-PROOF outdoor air quality monitor for measuring PM concentration, Temperature, Humidity, Weather parameters like light and noise, wind speed, wind direction, rainfall along with daylight visibility and brightness in real-time.


WEATHERPROOF

Comes in an IP55 box to ensure protection from dust and the elements.


MADE IN INDIA - LOCALLY MANUFACTURED &np; SERVICED

Airveda monitors are completely manufactured and serviced in India. Sensors are also calibrated locally to suit Indian conditions. Sensors can be locally re-calibrated as well as replaced easily. Our manufacturing facility has been running for 30 years and is a trusted name in the local industry.


REAL-TIME, CONTINUOUSLY TRANSMITS DATA

The outdoor monitor measures air quality every second, providing real-time data. The device supports Wi-Fi and GSM, to connect to the internet and transmit data to the server. The monitor can be connected to up to 5 Wi-Fi networks including your home, office or personal hotspot. The monitor will automatically connect with the Wi-Fi when it becomes available.

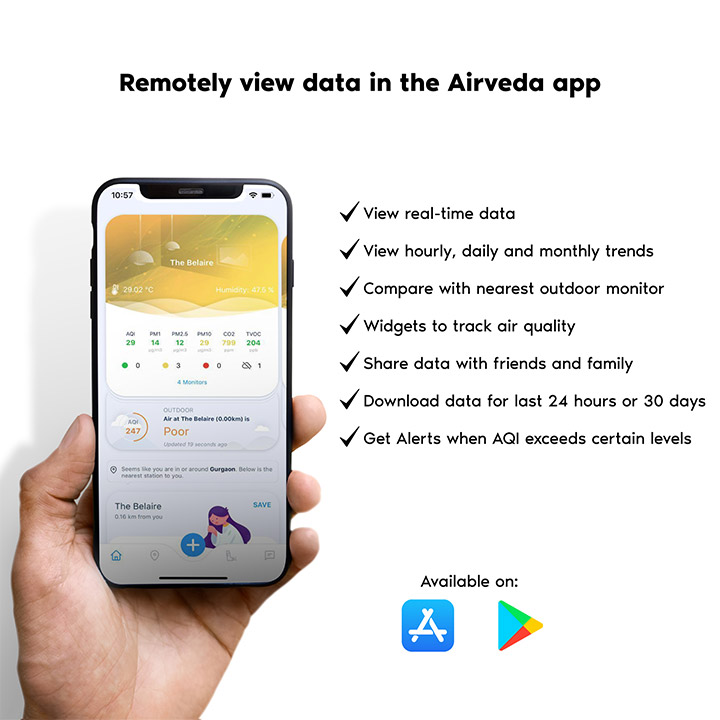

MOBILE APP ENABLED

Real-time and historic data and alerts can be viewed in the Airveda app, available on iOS and Android.


DASHBOARDS AND TV DISPLAYS

Our state-of-the-art Dashboards provide complete analytics, alerts, ability to download data, see trends, and understand performance wrt standards. TV displays provide flexible templates which can be customized easily to show data to occupants on TVs. These features require the purchase of our Data plan. Please talk to our team if interested to learn more.


Model Number: PM2510TH-WSWD-DV-LN-RA-WPGSM

PRODUCT DETAILS

APP CONFIGURABLE FEATURES

  • Measurement Frequency
    • Default:
      • Cloud Storage: Data is measured every 30 seconds.
      • For this project we will change to 5 minutes for both measurement and sending frequency.
    • Configurable Measurement frequency
      • Can be changed to 30 sec,1min, 5min, 10min, and 20min via mobile app.
    • Configurable Sending Frequency
      • Can be changed to 30 sec,1min, 5min, 10min, 20min and 30min via mobile app.
    • Note:
      • Longer sending frequency reduces power usage and battery backup as sending data to the server is very battery intensive.
      • Longer measurement frequency ensures longer local memory as a fixed number of items are stored in the memory. Also the sensor is turned off in between intervals which may help extend sensor life.
  • Alert Limits
    • Alert limits can be configured for each parameter via the app.
    • Get notifications on the app when alert limits are exceeded
  • US & INDIAN AQI
    • Select US or Indian AQI via APP. The same will be displayed on the device


  • Dimensions:
    • Cabinet: 24cm X 16cm X 9cm
    • Noise Sensor: Noise: Height - 15cm,Diameter - 14.5cm
    • Wind Speed sensor: Height - 19cm, Diameter - 12cm
    • Rainfall Sensor: Height - 26cm, lenght - 28cm, Width - 23cm
  • Display:
    • 2 Line LCD Display (Inside the box)
  • Weight: 1200 grams
  • Material: ABS
  • Power
    • Power Input : 110-240V AC, 0.3A, 50-60Hz (3m power cable provided)
    • Power Consumption : 10 Watt (Peak Power)
    • Internal Battery : 2900mAH/3.7V Lithium-ion rechargeable battery
    • Battery Backup : 4-6 hours battery backup
  • Connectivity
    • Wi-Fi :
      • Supports configuring up to 5 Wi-Fi networks including your home, office or personal hotspot.
      • Device will automatically connect with the Wi-Fi when it becomes available.
    • GSM 2G/3G/4G
      • SIM can be accessed/replaced by opening the cover to keep it secure.
  • Local Memory
    • Local memory stores data for 2 days to 40 days based on the measurement frequency.
  • Data Interval
    • 30 Seconds to 20 min (Configurable via app).
  • Data Push Protocol
    • HTTP post request to host-server
  • IP Rating
    • IP55
  • Operating Temperature
    • 0-60 degC
  • Operating Humidity
    • 0-95% RH
  • Mounting Options
    • Wall/pole mounted.
    • Wall-mounting mounts provided by default.
    • Pole Mounting accessories provided on request.

Warranty & Support

  • 1 Year warranty against any manufacturing defects.
  • Client responsible for getting device to our facilities for all servicing. Service time 7-10 working days.
  • Warranty is void if device is opened, tampered with or electronics damaged due to mechanical shock.
  • Warranty does not include sensor change

Technical Specifications

  • Measurement
    • Measurement parameters: PM2.5, PM10, Temperature, Humidity, Wind Speed, Wind Direction, Light, Noise and Rainfall
    • PM2.5
      • Range: 0-999 μg/m3
      • Resolution: 1 μg/m3
      • Relative error: Maximum of ±10% and ±10μg/m3
      • Min Detection: 0 μg/m3
      • Working Principle: Light Scattering
      • Life of Sensor: 1-year
      • Calibration: Factory calibrated. Sensors can be changed on-site using a sensor kit.
    • PM10
      • Range: 0-1999 μg/m3
      • Resolution: 1 μg/m3
      • Relative error: Maximum of ±10% and ±10μg/m3
      • Min Detection: 0 μg/m3
      • Working Principle: Light Scattering
      • Life of Sensor: 1-year
      • Calibration: Factory calibrated. Sensors can be changed on-site using a sensor kit.
    • Temperature
      • Range: 0 deg C to 60 deg C
      • Resolution: 0.1 deg C
      • Relative error: 1 deg C
      • Min Detection: 0 deg C
      • Working Principle: CMOS
      • Life of Sensor: more than 10-year
      • Calibration: Can be calibrated using the mobile app in configuration mode.Under Advanced Settings.Can also be calibrated remotely
    • Humidity
      • Range: 0-90%
      • Resolution: 1%
      • Relative error: +/- 3%
      • Min Detection: 0%
      • Working Principle: CMOS
      • Life of Sensor: more than 10-year
      • Calibration: Can be calibrated using the mobile app in configuration mode.Under Advanced Settings.Can also be calibrated remotely
    • Wind Speed
      • Range: 0 - 60 m/s (116 knots)
      • Resolution: 0.01 m/s (0.02 knots)
      • Relative error: ±2%
      • Min Detection: 0.03 m/s
      • Working Principle: Ultrasonic Sensor
      • Calibration: Factory Calibrated
    • Wind Direction
      • Range: 0 - 359 deg
      • Resolution: 1 deg
      • Relative error: ±3 %
      • Working Principle: Ultrasonic Sensor
      • Calibration: Factory Calibrated
    • LUX (Light)
      • Range: 1-200000 lux
      • Resolution: 1 lux
      • Relative error: 5%
      • Min Detection: 1 lux
      • Working Principle: CMOS
      • Life of Sensor: 3 years
      • Calibration: Factory Calibrated
    • Daylight visibility
      • Range: 5-10000m
      • Resolution: 1m
      • Relative error: ±10%
      • Min Detection: 5m
      • Working Principle: 35° forward scattering principle
      • Life of Sensor: more than 5 years (in air)
      • Calibration: Factory Calibrated
    • Noise
      • Range: 30-130db
      • Resolution: 0.1db
      • Relative error: ±0.5dB
      • Min Detection: 30dB
      • Working Principle: Electric microphone
      • Life of Sensor: 3 years
      • Calibration: Factory Calibrated

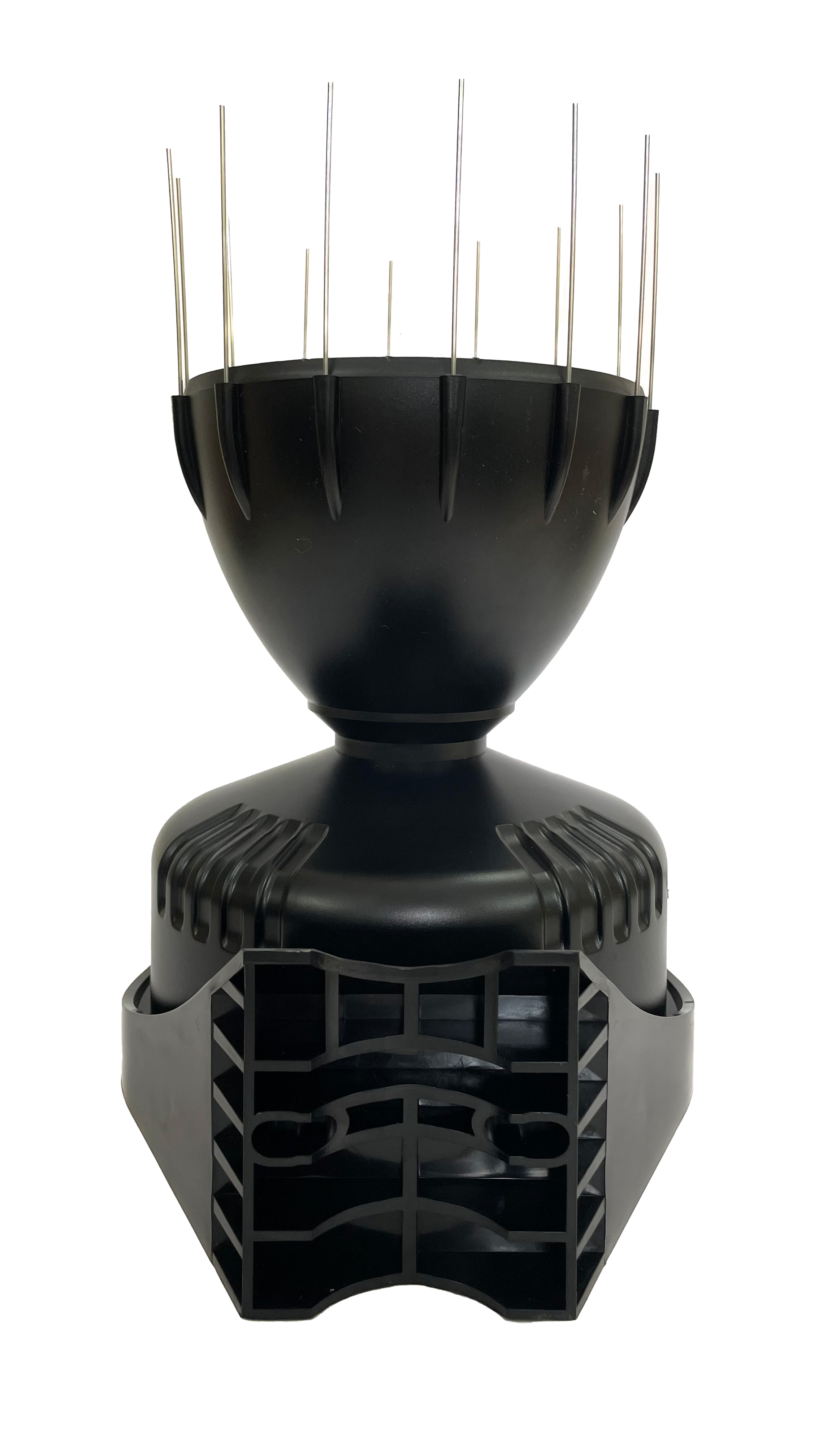

    • Rainfall
      • Range: 65,000 mm
      • Resolution: 1mm
      • Relative error: ±4 % (upto 100 mm/hr)
      • Min Detection: 1mm
      • Working Principle: Tipping bucket
      • Life of Sensor: 10 years
      • Calibration: Factory Calibrated
Airveda Data Plan
You may optionally purchase our Data Plan which gives you access to our state-of-the-art web Dashboard which provides a comprehensive solution for managing, analyzing and understanding air quality in your projects. Airveda Dashboard is a RESET certified Data Provider and can be used for getting RESET certification for your projects.
Our diverse catalog of TV display templates enable organizations investing in air purification, to showcase indoor and/or outdoor air quality information to employees or visitors, to help them feel secure regarding the quality of air they are breathing Indoors.
These features require purchase of our Data plan. Please email info@airveda.com if interested to learn more.
